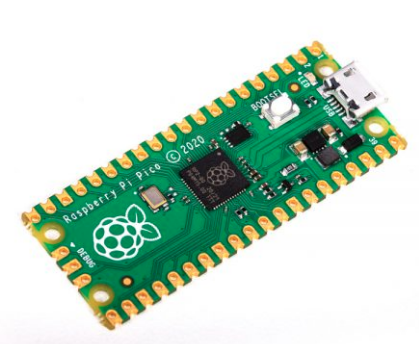

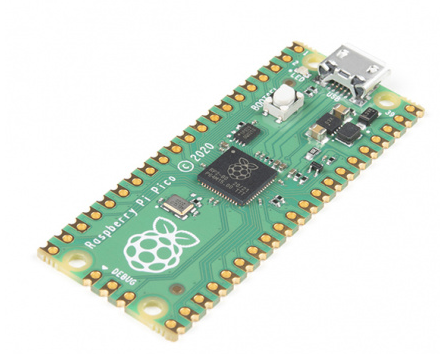

RP2040 microcontroller chip designed by Raspberry Pi in the UK
-
Dual core Arm Cortex M0 + processor, dynamic clock frequency up to 133 MHz
-
264KB SRAM and 2MB onboard Flash memory
-
Castellated module allows soldering directly to carrier boards
-
Device and host powered USB 1.1
-
Low power sleep and sleep modes
-
Drag and drop programming using mass storage over USB
-
26 × multi-function GPIO pin
-
2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
-
Accurate clock and timer on chip
-
Temperature sensor
-
On-chip time-lapse floating point libraries
-
8 × Programmable I / O (PIO) state machines for dedicated peripheral support
